Reliable Mini Punch Press and High-Speed Mini Punch Press, 6T and 10T tonnage, 110–800 S.P.M punching speed. Features high-rigidity frame, variable-speed drive, pneumatic clutch brake, low noise, and multiple work modes. Optional feeders, safety devices, and material handling accessories available.

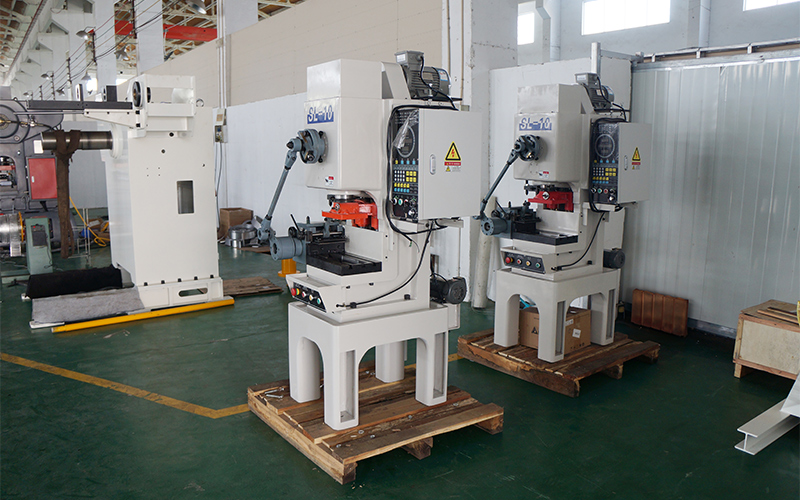

Our mini punch press and High-Speed Mini Punch Press machines are built for precision and efficiency. As a reliable punch press machine and metal punch press solution, they are available in 6T and 10T tonnage, with punching speeds from 110 to 800 strokes per minute (SPM). They are ideal for small parts manufacturing and repetitive stamping press operations.
The machine body is made from a single-piece high-strength alloy casting. Heat treatment eliminates internal stress, ensuring high precision, stability, and vibration resistance.
Provides smooth, reliable operation for long-term use.
Energy-efficient design allows speed adjustment to match different stamping processes.
Supports continuous, single-stroke, and safety stroke modes for versatile production needs.
Operates below 72 dB, creating a comfortable working environment.
✓ Material Type: Stainless Steel, Copper, Aluminum, etc.
✓ Capacity: 6 to 10 Tons
✓ Material Thickness: 0.1-1.0 mm
✓ Coil Width: 20-200 mm
✓ Speed: 110-800 SPM
✓ Applications: Suitable for metal button and eyelet stamping lines
The High-Speed mini punch press is a compact small punch press designed for faster production without sacrificing accuracy. As an efficient 10 ton punch press, it is suitable for high-volume stamping operations in electronics, hardware, and small metal parts industries. This versatile punch press ensures consistent results for micro stamping tasks.
| Model | SL-6T | SL-10T |
|---|---|---|
| Capacity | 6T | 10T |
| Stroke | 30 | 30 |
| Die Height | 170 | 190 |
| Strokes Per Minute | 100-300 SPM | 110-800 SPM |
| Slide Adjustment | 30 | 40 |
| Slide Area | 160×200 | 140×200 |
| Bolster Area | 230×300 | 220×355 |
| Press Dimension | 595×865×268 | 500×1000×215 |
| Net Weight | 750 | 850 |
| Main Motor | 1.1 kW × 4P | 1.5 kW × 4P |
| Operation Method | One-hand or two-hand operation (optional) | |
| Stroke Type | Inching / Single Stroke / Continuous | |
| Color | Standard White | |

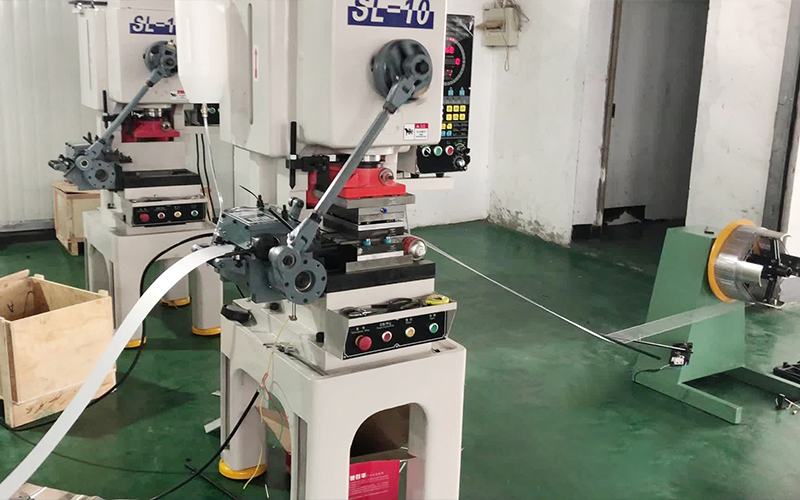

Electronic Component Stamping

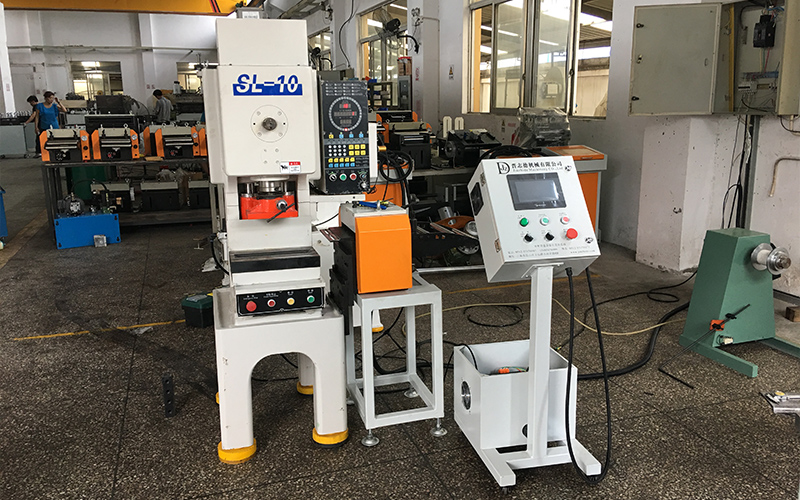

Small Hardware Production

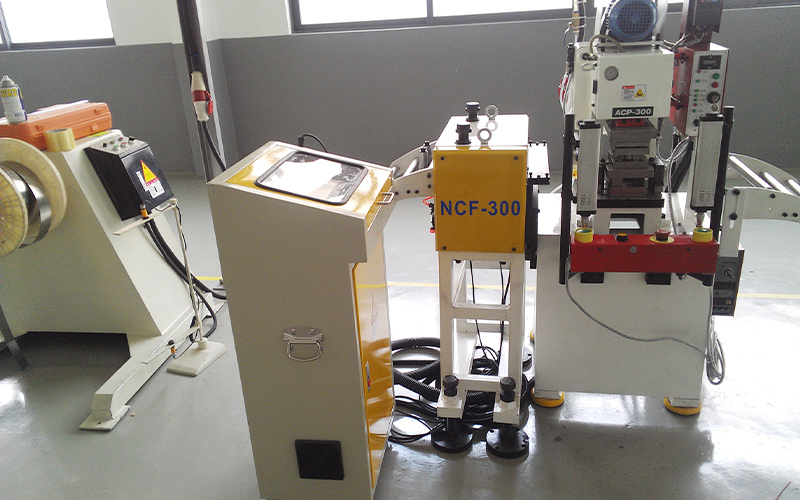

Metal Sheet Punching

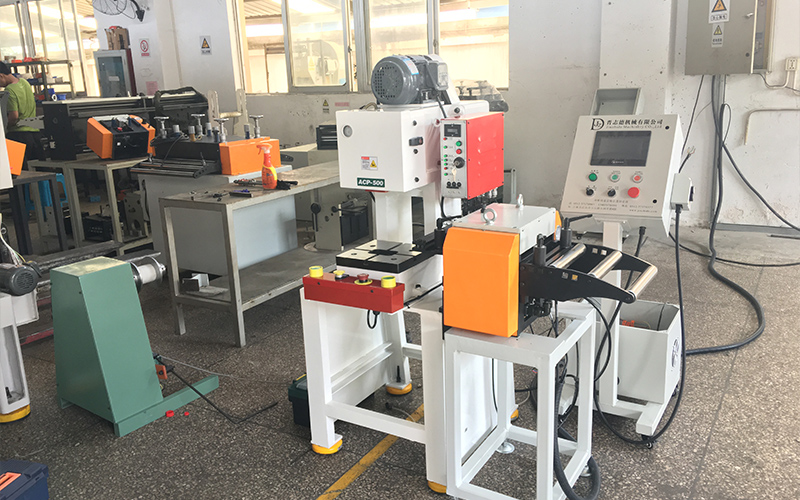

High-Precision, Repetitive Stamping Operations
Share your production requirements and material specifications. Our engineers will provide a tailored press automation solution with fast quotations and professional technical support.
