We offer four types of high-speed press line configurations, each designed for specific materials and production needs. As a complete metal stamping automation line, these systems deliver reliable, high-speed punch press operations with precise feeding and minimal material waste. Whether you need a terminal high-speed stamping line, a robust motor lamination stamping line, or a specialized connector stamping feeder for precision electronics, our solutions cover all applications from thin strips to silicon steel. Every configuration is an automatic high-speed press line built for high-speed continuous stamping, with line integration handled from coil loading through to the finished part.

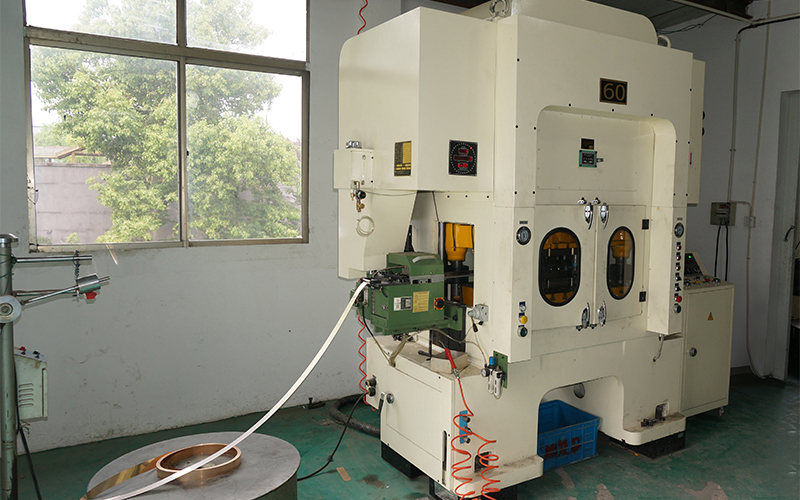

1. Standard Type Electronic Parts Stamping Line

Configuration: Pallet Uncoiler + High-Speed gripper feeder + H-Frame High-Speed Punch Press (H-type press)
Materials: Thin sheet metal (0.1–1.5mm), narrow strips, copper, aluminum, stainless steel; suitable for electronic terminals, connectors, and springs
Advantages: Feeding speed up to 800–1200 strokes per minute; high synchronization; no slippage or material loss; maximizes high-speed punch press performance
Applications: Electronics hardware, precision terminals, connectors, springs, small metal parts. Ideal as a terminal high-speed stamping line with integrated connector stamping feeder solutions.
Features: Compact footprint, fast operation, strong stability
Sample Stamped Products: Terminal pins, connector shells, battery tabs, metal springs

2. Economy Type Metal Stamping Automation Line

Configuration: Uncoiler + Roll Feeder + C-Frame High-Speed Punch Press
Materials: Medium-thin plates (0.2–2.0mm), steel strips, iron
Advantages: Cost-effective, simple design, easy maintenance; supports medium to high-speed stamping (300–600 strokes/min)
Applications: Small hardware, basic stamping parts, budget-friendly automation upgrades
Limitations: Slightly lower stability and precision compared to gripper feeders; not suitable for ultra-high-speed or precision parts
Sample Stamped Products: Brackets, clips, washers, simple metal components

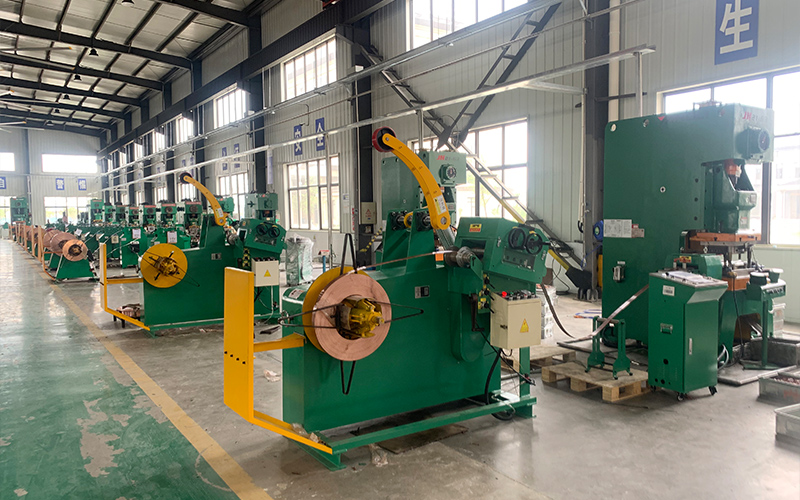

3. Wide & Thick Plate Auto Components Stamping Line

Configuration:2-in-1 decoiler straightener (Two-in-One Unit) + NC Servo Feeder + High-Speed Punch Press
Materials: Wide sheets (300–800mm), medium-thick plates (1.5–6.0mm), long pitch, multi-stage feeding
Advantages: Integrated uncoiling and leveling for smooth plates; NC servo feeder supports multi-stage, customizable step feeding with ±0.01mm precision
Applications: Automotive parts, motor housings, electrical base plates, wide precision components, multi-operation stamping lines
Sample Stamped Products: Chassis panels, motor mounting plates, switch housings, wide electronic enclosures

4. Specialized Motor Core Stamping Line

Configuration:Double Head Decoiler + S-Loop Straightener + High-Speed cam feeder / Dual-Axis NC Servo Feeder + High-Speed Punch Press (In-Die Stacking)
Materials: Silicon steel sheets (0.2–0.5mm), EI laminations, motor stator & rotor cores
Advantages: S-loop straightening removes internal stress for ultra-flat sheets; cam or dual-axis servo feeder ensures stable high-speed feeding and accurate stacking
Applications: Motor cores, EV motors, industrial motors, compressor rotors (in-die stacking or riveting). A complete motor lamination stamping line solution.
Features: Specialized for high flatness and stacking precision; minimal burrs
Sample Stamped Products: Stator laminations, rotor laminations, stacked cores, motor end plates

As a high-speed stamping line manufacturer and supplier, JINZHIDE engineers each configuration around your material, part and output target. Contact our engineers for a quotation, or browse the full range of stamping line solutions.
