A hydraulic decoiler is specialized equipment for metalworking and steel coil handling, engineered to unwind heavy coils with weights ranging from 3 to 25 tons.
A hydraulic decoiler is specialized equipment for metalworking and steel coil handling, engineered to unwind heavy coils with weights ranging from 3 to 25 tons. By using hydraulic power to expand and secure the coil's inner diameter, it simplifies both loading and tensioning, cutting down on manual labor and boosting throughput compared to hand-crank systems.
✓ Raw Material Type: Handles coils of galvanized and stainless steel, cold- and hot-rolled steel, aluminum, copper, and more.
✓ Coil Width: 5-2000 mm
✓ Coil Thickness: 0.1-6.0 mm
✓ Coil I.D.: 450-520 mm
✓ Coil O.D.: Max 1200 mm
✓ Speed: 15 m/min
✓ Applications: Pressing line / Metal stamping line / Forming line

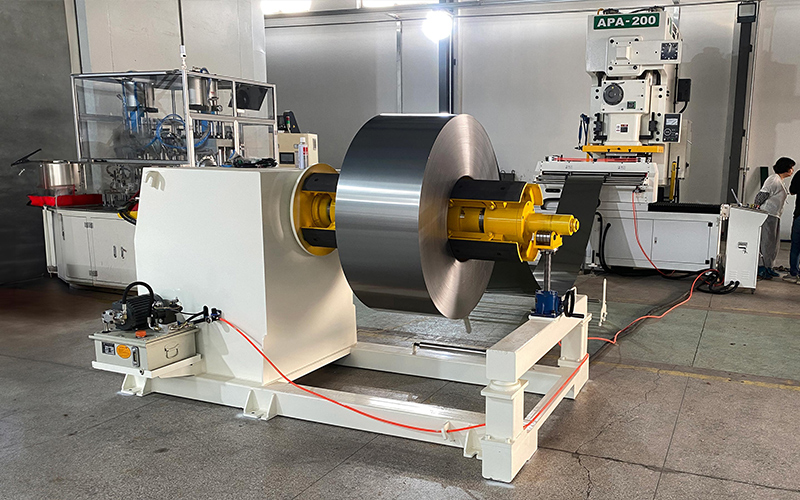

Our hydraulic decoiler machine uses a hydraulic cylinder to expand the mandrel from 450 mm to 530 mm, securing coils up to 25 tons.
A detachable control box with manual buttons lets operators monitor and adjust the uncoiling in real time.
A pneumatic PU-wheel pressing arm applies surface pressure to prevent coil flaring. The robust frame houses the spindle, hydraulic cylinders for tightening and unwinding, and a mobile loading carriage to speed up coil placement.
Widely used as a reliable heavy duty decoiler and standard decoiler machine in automotive, construction, and metal fabrication lines, these machines cut loading time and reduce manual effort for heavy-coil processing.
| Model | MTC-700 | MTC-800 | MTC-1000 | MTC-1300 | MTC-1600 |
|---|---|---|---|---|---|
| Width | 700 | 800 | 1000 | 1300 | 1600 |
| Thickness | 0～4.5 | ||||
| Load Capacity | 2500～20000 | 3000～20000 | 3000～20000 | 3000～20000 | 3000～20000 |
| Coil ID | ￠450～￠520 | ||||
| Coil OD | ￠1200 | ||||
| Discharge Speed | 0～15 m/min (VFD) | ||||
| Start/Stop | Inductive | ||||
| Coil Expansion | Hydraulic | ||||
| Power Voltage | AC 380V | ||||
As a highly efficient metal decoiler, it can handle a wide range of sheet metal stamping applications, including components for hardware, household appliances, furniture fittings, motorcycle parts, mobile device casings, and computer accessories.

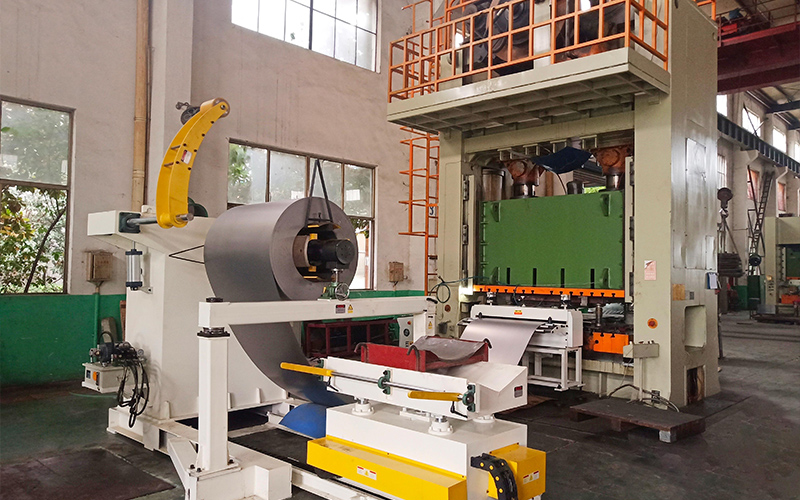

Hydraulic Decoiler
Loads the coil and unwinds the material.
Metal Straightener
Flattens and aligns the strip before it enters the feeder.
NC Servo Feeder
Accurately advances the strip into the press.
Stamping Press
Forms the final stamped parts.
Share your production requirements and material specifications. Our engineers will provide a tailored press automation solution with fast quotations and professional technical support.
