Unwinding Made Easy: A Complete Guide to Choosing the Right Decoiler
May 15, 2026|
View:2285 Types of Decoiler Machines for Coil Processing & Stamping Lines
In coil processing and stamping operations, a decoiler is an essential piece of equipment. Different decoiler types handle different coil weights and thicknesses, so understanding their features makes feeding and unwinding much smoother. This guide also explains how to choose a decoiler, covering coil weight, coil width, inner diameter, outer diameter, and loading capacity.
1. Heavy-Duty Decoiler
Heavy-Duty Decoiler is commonly used in stamping operations and has a loading capacity from 500 kg up to 8 tons. Its hand-expanding mandrel design makes it straightforward to operate, suitable for medium to heavy-duty workloads.
2. Hydraulic Decoiler Machine
Hydraulic Decoiler can manage coils from 2 tons to 20 tons. The hydraulic-expanding mandrel reduces manual effort, making it easier to feed and unwind larger coils with less strain.
3. Dual-Station (Double Head) Decoiler
Dual-Station Decoiler is ideal for frequent coil changes. Supporting 500 kg to 5-ton coils, it features two mandrels for seamless switching, minimizing downtime during coil replacement and keeping production continuous.
4. Light-Duty Decoiler / Uncoiler
Light-Duty Decoiler handles coils between 100 kg and 200 kg and is the smallest manual decoiler in the range. Its compact design makes it easy to install and move, fitting well with small to medium-sized production needs.

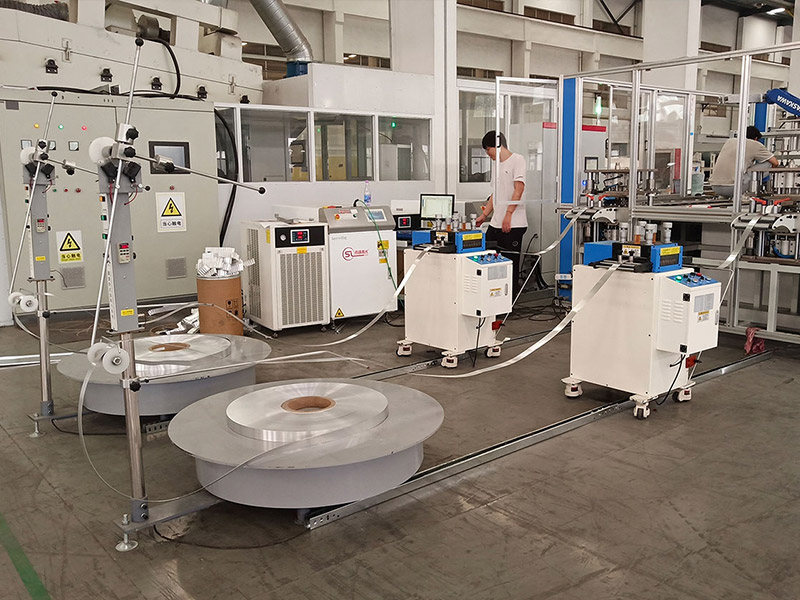

5. Disc-Type Horizontal (Pallet) Decoiler
Disc-Type Horizontal Decoiler is designed for thin coils up to 1.0 mm thick. Also supplied as a pallet decoiler, it allows multiple coils to be stacked and unwound at higher speed, making it suitable for continuous processing of thin materials.
Comparison of the Five Decoiler Types
Type | Loading Capacity | Best For |
|---|---|---|
Heavy-Duty Decoiler | 500 kg to 8 tons | Medium to heavy stamping work |
Hydraulic Decoiler | 2 tons to 20 tons | Large coils, reduced manual effort |
Dual-Station Decoiler | 500 kg to 5 tons | Frequent coil changes |
Light-Duty Decoiler | 100 kg to 200 kg | Small to medium production |
Pallet Decoiler | Thin coils up to 1.0 mm | Multi-stack, high-speed thin material |
How to Choose a Decoiler for Your Line
Selection comes down to four figures. Loading capacity sets the maximum coil weight the mandrel, frame, and drive can carry. Coil width decides how the decoiler has to match the straightener and feeder downstream. Inner diameter and outer diameter determine whether the expanding mandrel can grip the coil and how much material can be loaded between changes. Coil weight then confirms that all of these fit inside the same machine.
If you are unsure which decoiler fits your production, Changzhou Jinzhide can provide tailored advice and equipment support. They help companies select the right machine based on coil type, weight, and workflow, making feeding and unwinding easier.
Decoilers come in a variety of types, each suited to specific scenarios. Knowing these basics can save time during selection and operation, while also reducing manual handling effort. Changzhou Jinzhide also offers equipment setup and technical support, helping manufacturers find the right decoiler to keep production lines running smoothly. For a deeper look at coil width and diameter parameters, see the decoiler parameter guide.
