The Manual Decoiler use a vertical expansion/contraction support design. The mandrel can be hand-cranked to expand and secure the inner diameter of the coil, and an automatic contact-type induction system handles start/stop control.
The manual decoiler uses a vertical expansion/contraction support design. The mandrel can be hand-cranked to expand and secure the inner diameter of the coil, a hand-expanding decoiler design that enables simple coil loading, while an automatic contact-type induction system handles start/stop control. As a reliable decoiler, this setup offers straightforward operation, high stability, and low-cost coil handling.
✓ Raw Material Type: Various metal coil materials
✓ Coil Width: 5-1300 mm
✓ Coil Thickness: 0.1-6.0 mm
✓ Coil I.D.: 450-520 mm
✓ Coil O.D.: Max 1200 mm
✓ Speed: 15 m/min
✓ Applications: Pressing line / Metal stamping line / Forming line
As a manual decoiler manufacturer and supplier, JINZHIDE builds this motorized manual uncoiler, capable of uncoiling steel strips with widths ranging from 5mm to 1300mm, thicknesses varying from 0.1mm to 6mm, and a load capacity of up to 2 tons, a small coil capacity suited to light stamping work. It is typically suitable for coils with inner diameters between 450-520mm, and an outer diameter of up to 1200mm.
If the coil thickness for the decoiler machine exceeds 2 mm, a pneumatic hold-down arm can be optionally fitted; if discharge-speed adjustment is required, a frequency inverter can be optionally added; if uncoiling non-metallic materials, a photoelectric switch can be optionally installed. This makes it a highly versatile metal decoiler for various stamping lines.
The table below lists the MT-200 to MT-600 manual decoiler models, covering coil width, coil diameter, load capacity, and manual expansion type.
| Model | MT-200 | MT-300 | MT-400 | MT-500 | MT-600 |
|---|---|---|---|---|---|
| Width | 200 | 300 | 400 | 500 | 600 |
| Thickness | 0～2.0 | 0～3.0 | 0～3.0 | 0～3.0 | 0～3.0 |
| Load Capacity | 500 | 800 | 1200 | 1500 | 2000 |
| Coil ID | ￠450～￠520 | ||||
| Coil OD | ￠1200 | ||||
| Motor | 1/2 | 1 | 2 | 2 | 2 |
| Gearbox | 1 : 60 | ||||
| Discharge Speed | 15 | ||||
| Start/Stop | Inductive | ||||
| Coil Expansion | Manual | ||||
| Power Voltage | AC 380V | ||||

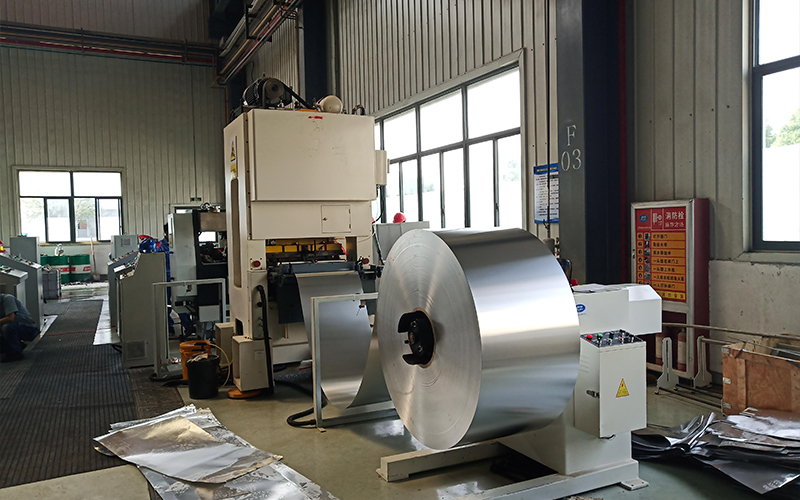

The manual decoiler is well suited to basic metal stamping and small production lines, covering a variety of metal sheet stamping applications such as hardware components, home appliance parts, furniture fittings, motorcycle and mobile-phone accessories, as well as computer peripherals.
Decoiler
Loads the coil and unwinds the material.
