Three Layout Options for Decoiler Straightener Feeder with Stamping Press

In metal stamping production, the layout between the feeding system and the Stamping Press has a direct impact on workshop space utilization, operation convenience, and future production line adjustments. The Decoiler Straightener Feeder, also known as a 3-in-1 feeder, integrates decoiling, straightening, and feeding functions into one machine. With a compact structure and a footprint of around 4 meters, it provides flexible installation options for different factory layouts and stamping production requirements.

As a stamping automation line supplier, Changzhou Jinzhide Machinery Technology Co., Ltd. provides flexible Decoiler Straightener Feeder solutions according to customers' workshop conditions, Stamping Press feeding direction, material flow, and production process requirements. The equipment can be arranged in three common ways: left-to-right feeding, right-to-left feeding, and front-to-back feeding.

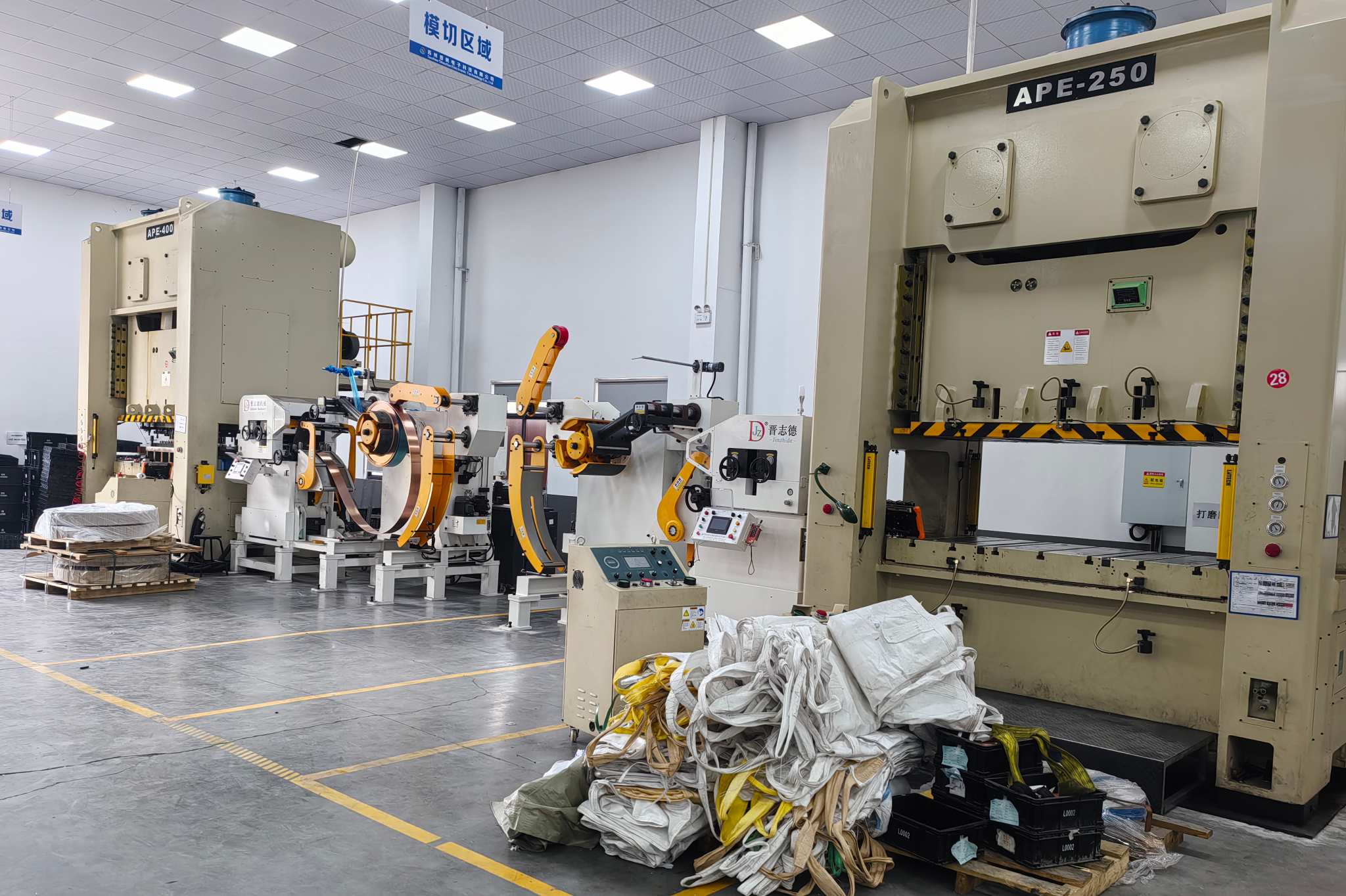

Left-to-Right Feeding Layout for Standard Stamping Production Lines

The left-to-right feeding layout is one of the commonly used installation methods for Decoiler Straightener Feeder systems.

In this arrangement, the Decoiler Straightener Feeder is installed on one side of the Stamping Press. The coil material is loaded into the decoiling section, then passes through the Straightener to remove bending stress before being fed into the stamping die by the Feeder for continuous stamping operations.

After stamping, finished parts can be collected manually or transferred by automatic handling equipment according to the customer's production requirements.

This layout is suitable for many standard stamping workshops. The material feeding direction is clear, and operators can easily perform coil loading, machine adjustment, and daily inspection. It also provides convenient conditions for adding equipment such as scrap collectors, automatic unloaders, or robotic systems in the future.

The Decoiler Straightener Feeder combines a Decoiler, Straightener, and Feeder into one integrated unit. After the coil is installed, the material is automatically processed through decoiling, straightening, and feeding procedures. The servo feeding system sends the sheet material into the Stamping Press according to the preset feeding length, supporting continuous stamping production.

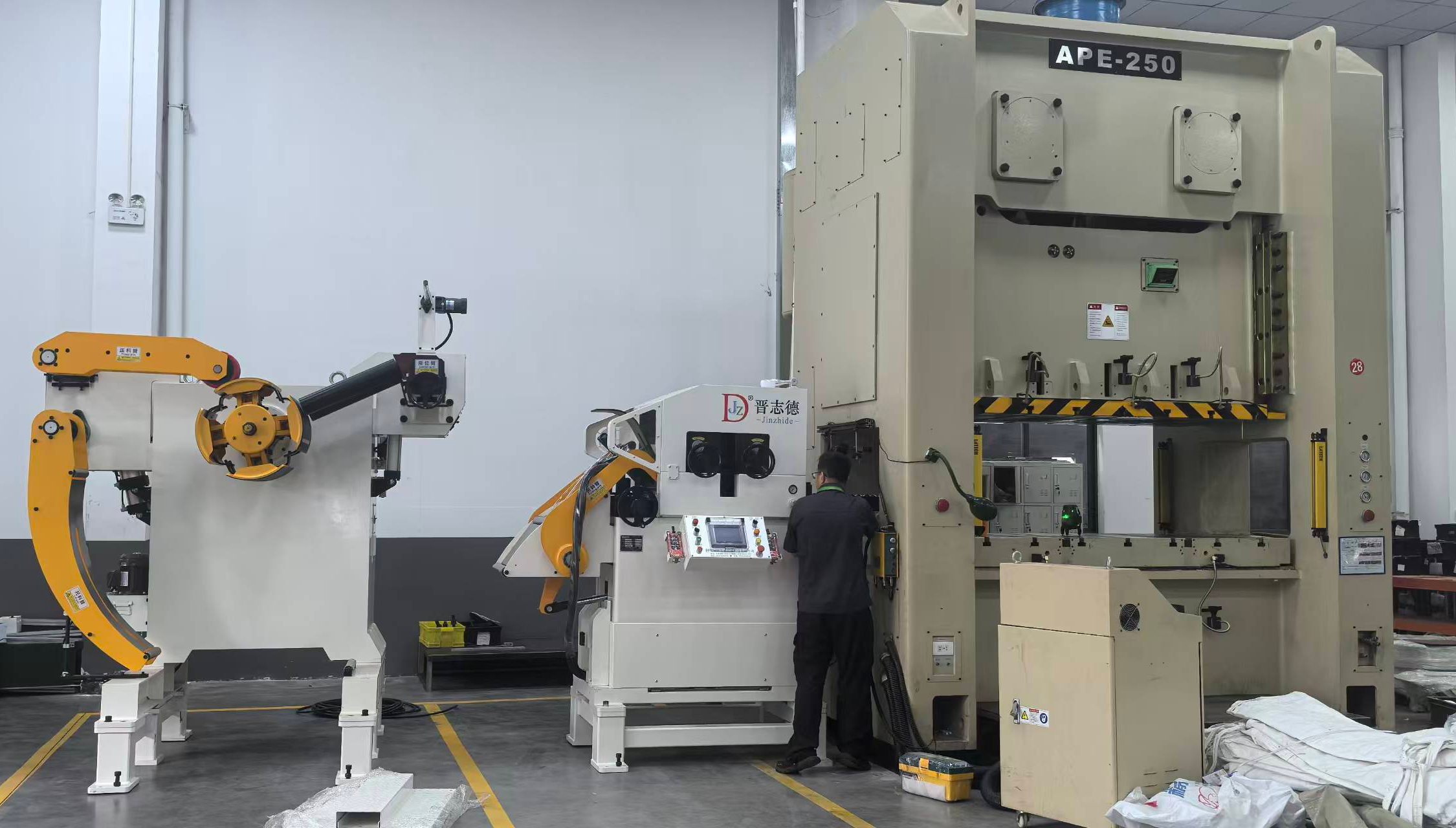

Right-to-Left Feeding Layout for Different Workshop Arrangements

Due to differences in factory layouts, material storage locations, and production line directions, some customers require the feeding direction to be reversed. The right-to-left feeding layout provides another installation option for these situations.

The working principle is the same as the left-to-right layout, but the material feeding direction is adjusted according to the actual workshop conditions.

During production line planning, customers may need to consider coil storage areas, finished product transportation routes, operator working positions, and the location of existing equipment. By selecting a suitable feeding direction, the Decoiler Straightener Feeder can be integrated into the existing production area more easily.

Before manufacturing, Jinzhide evaluates the customer's Stamping Press model, material specifications, die direction, and workshop space to recommend a suitable machine configuration and installation method.

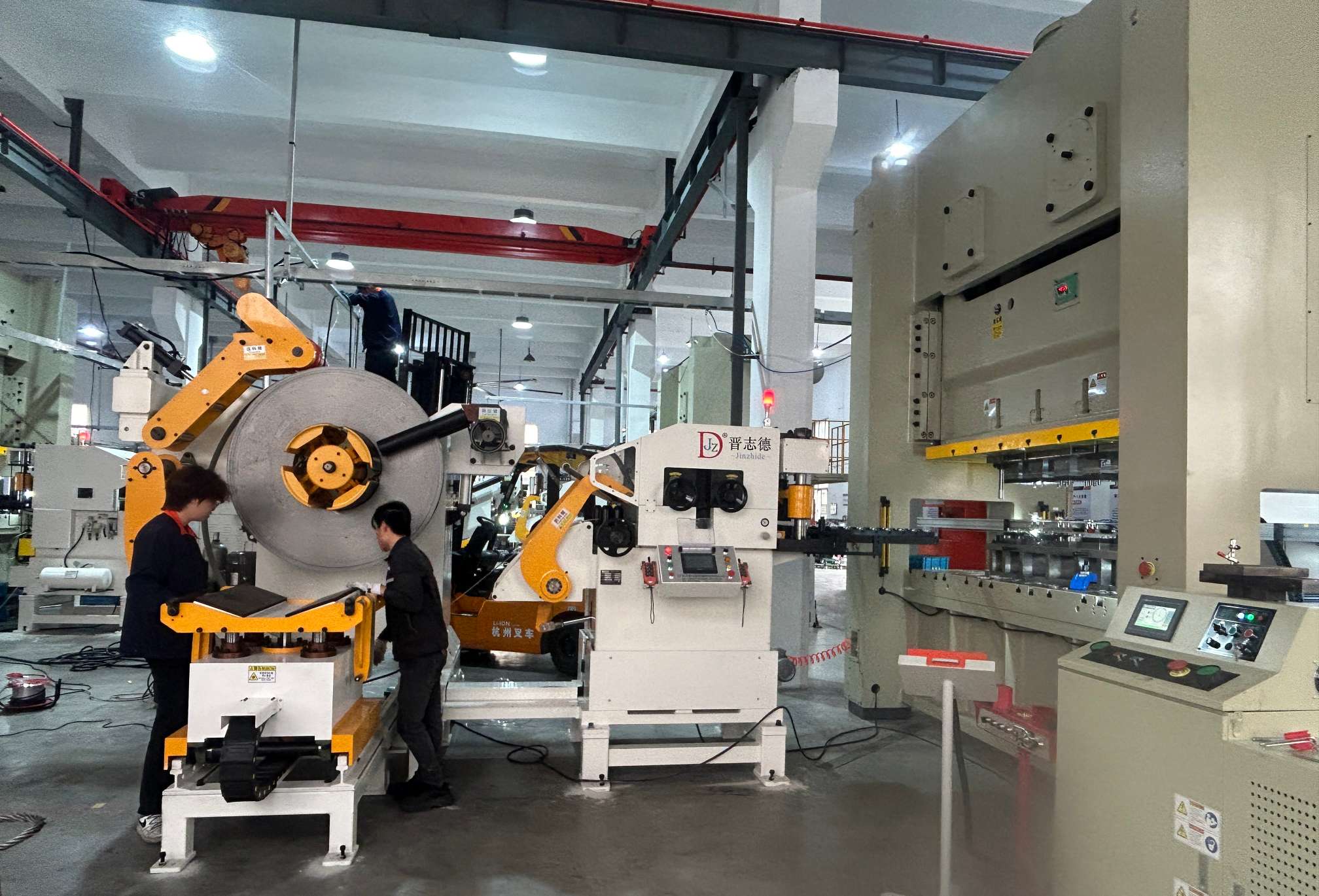

Front-to-Back Feeding Layout for Space-Limited Workshops

Besides side feeding arrangements, the Decoiler Straightener Feeder can also be installed in a front-to-back layout.

When the workshop width is limited or there are obstacles such as columns, aisles, or surrounding equipment, the front-to-back feeding method can help optimize the machine arrangement. The Decoiler Straightener Feeder can be positioned in front of or behind the Stamping Press, allowing the coil material to enter the stamping area from the required direction.

This layout is commonly used in production areas where space planning is important. Since the Decoiler Straightener Feeder combines multiple functions in one machine, it reduces the installation space required compared with separate Decoiler, Straightener, and Feeder units.

For customers planning multiple stamping machines or automated production areas, choosing a suitable equipment layout can make better use of the available workshop space.

Structure and Working Process of Decoiler Straightener Feeder

A Decoiler Straightener Feeder mainly consists of three sections: the Decoiler, Straightener, and Feeder.

The Decoiler is used to support and unwind coil material. Depending on coil weight and production requirements, the machine can be equipped with different coil expansion structures for convenient coil installation and fixing.

The Straightener uses multiple straightening rollers to process the coil material and reduce bending caused by coil forming. After straightening, the material enters the feeding section, where the servo-driven Feeder controls the feeding length according to the stamping process requirements.

During operation, the operator loads the coil onto the Decoiler, completes material threading, adjusts the straightening and feeding parameters, and then starts continuous stamping production. The sheet material passes through the Decoiler Straightener Feeder before entering the Stamping Press die area.

The equipment can be used for various coil materials, including cold rolled steel, stainless steel, aluminum sheet, copper strip, and galvanized sheet. The suitable machine model can be selected according to material thickness, width, coil weight, and stamping requirements.

Matching Different Stamping Presses for Automatic Production

The Decoiler Straightener Feeder is widely used with mechanical Stamping Presses, pneumatic Stamping Presses, high-speed Stamping Presses, and other stamping equipment. It is compatible with gap frame presses, straight side presses, and H-frame presses to meet different production requirements.

In applications such as hardware parts, electrical components, household appliance parts, automotive components, and electronic products, the feeding system needs to match the Stamping Press speed, die structure, and material specifications.

Through automatic coil feeding, the production process becomes more continuous and reduces manual material handling during stamping operations.

Jinzhide provides different Decoiler Straightener Feeder models for thin plate, medium plate, thick plate, and heavy-duty material applications. Each solution is configured according to customers' actual production requirements, including material width, thickness, coil weight, and Stamping Press specifications.

Jinzhide Manufacturing Capability and Customer Support

Changzhou Jinzhide Machinery Technology Co., Ltd. focuses on the design and manufacturing of stamping automation equipment, including Decoiler Straightener Feeders, Decoiler Straighteners, Feeders, Straighteners, Decoilers, and turnkey metal stamping line solutions.

The company has complete production processes covering machining, welding, surface treatment, assembly, electrical installation, and machine testing. Each JINZHIDE 3-in-1 feeder is assembled and tested according to production procedures before delivery.

For customers planning automatic stamping production lines, selecting a feeding machine is not only about the machine function itself. The equipment layout, Stamping Press connection direction, material flow, and workshop conditions also need to be considered.

With flexible installation options and integrated structure, the Decoiler Straightener Feeder can adapt to different factory layouts and provide a practical coil feeding solution for continuous stamping production.
