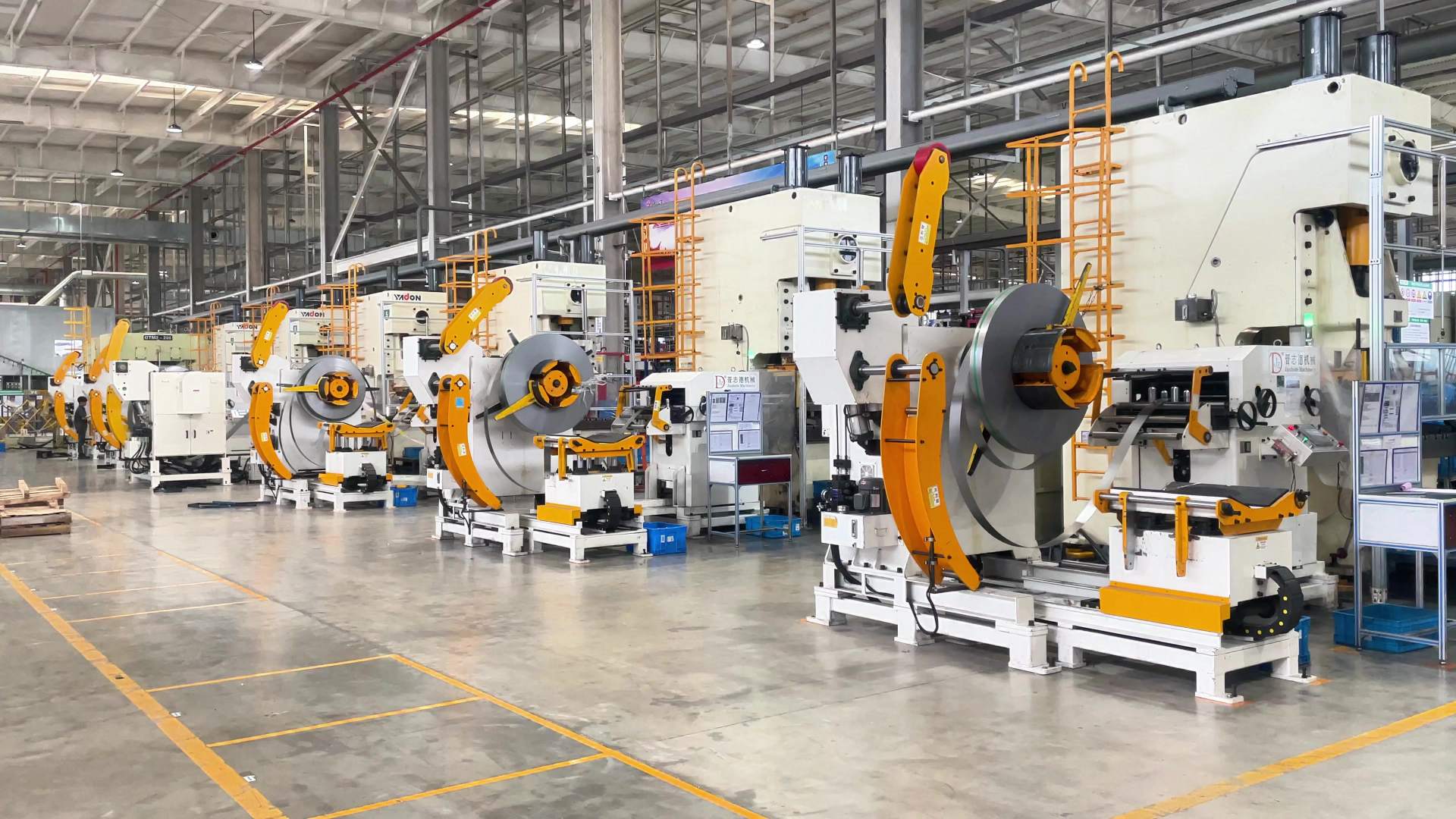

Recently, Bull Group placed a repeat order with Jinzhide for 6 sets of thin plate Decoiler Straightener Feeders. This significant thin plate decoiler straightener feeder order highlights the trust our clients place in our automation solutions. The equipment will be matched with precision Stamping Presses for the automatic stamping production of switch electrical components, providing a continuous coil feeding solution for the customer’s existing production line.

As a manufacturer of stamping automation equipment, Jinzhide focuses on designing and manufacturing coil feeding systems based on customers’ actual production requirements. According to different material specifications, stamping processes, and production conditions, Jinzhide provides suitable solutions including decoiling, straightening, and feeding equipment.

Thin Plate Decoiler Straightener Feeder for Precision Stamping Applications

In the production of switch electrical components, many parts require continuous stamping processes to achieve the required shapes and structures. Since these components are usually produced from thin metal sheets and involve precision forming processes, stable material feeding and proper sheet flatness are important factors during production.

The equipment purchased by Bull Group is a highly efficient 3-in-1 coil feeding line that integrates three functions into one machine: decoiling, straightening, and feeding. After the coil material is loaded, the Decoiler releases the strip material continuously. The material then passes through the Straightener section to improve sheet flatness and reduce deformation caused by coil winding. Finally, the Feeder sends the material into the precision Stamping Press for continuous stamping operations.

Compared with separate decoiling, straightening, and feeding machines, the integrated structure of the Decoiler Straightener Feeder helps simplify the production line layout and reduces the connection between different machines. The centralized design also makes operation adjustment and daily production management more convenient.

Equipment Structure and Automatic Feeding Process

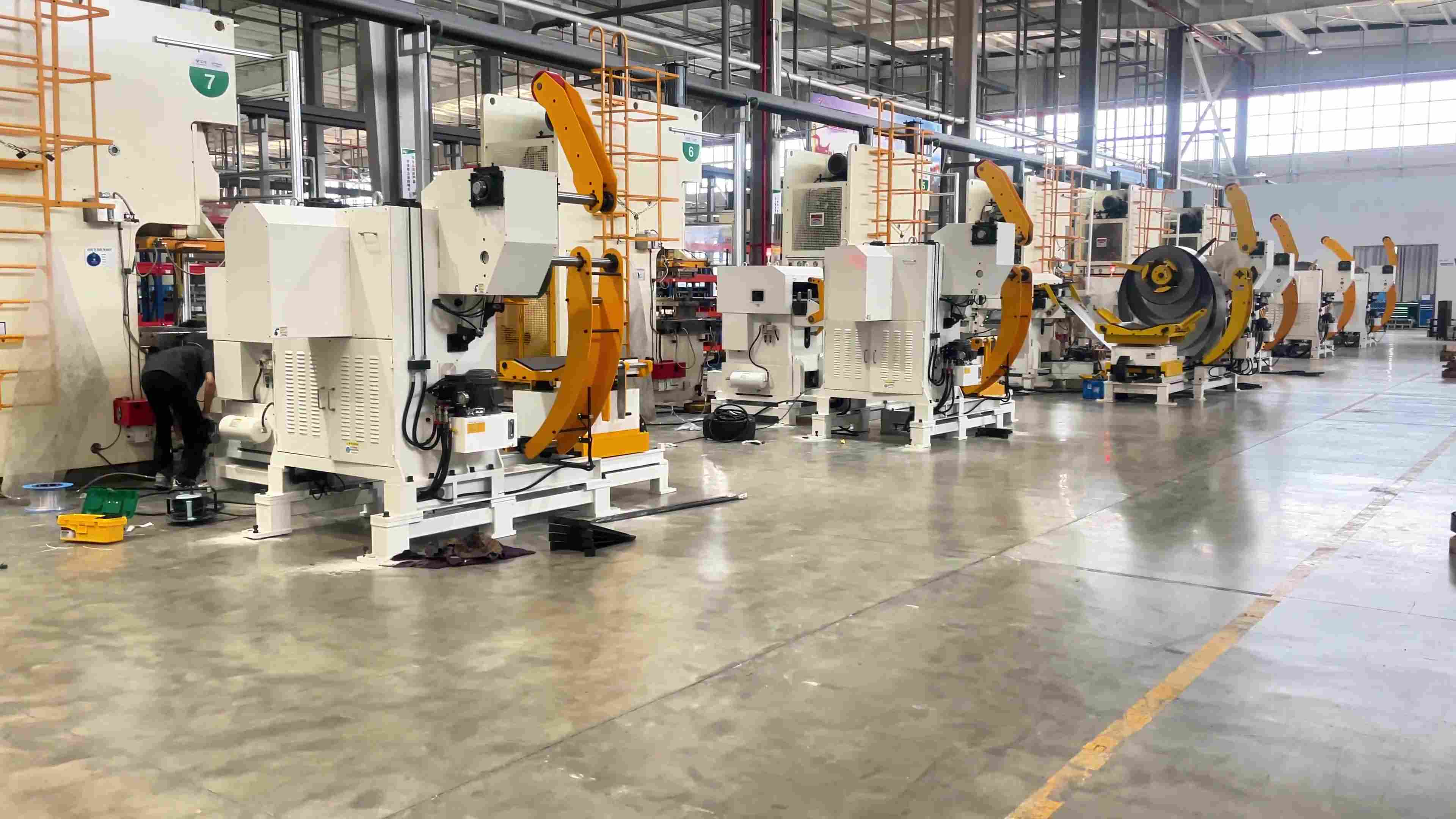

The thin plate Decoiler Straightener Feeder mainly consists of a Decoiler unit, Straightener unit, servo feeding unit, and electrical control system.

The Decoiler section is used to hold and release coil materials through rotational movement, allowing the strip material to enter the processing area continuously. According to different production requirements, the equipment configuration can be adjusted based on material specifications and coil conditions.

The Straightener section is designed to improve the flatness of coil materials before stamping. Through multiple upper and lower rollers, the sheet passes through the straightening area, where roller pressure adjustments help reduce bending and unevenness caused during coil forming.

The Feeder section adopts servo drive technology to control the feeding movement according to the working cycle of the Stamping Press. Operators can set feeding length, feeding speed, and other parameters through the control system, allowing the Feeder to work together with the stamping equipment.

During continuous production, the coil material only needs to be threaded once before automatic feeding and stamping operation. This helps reduce repeated manual operations and supports a more continuous stamping process.

Suitable for Various Thin Sheet Materials

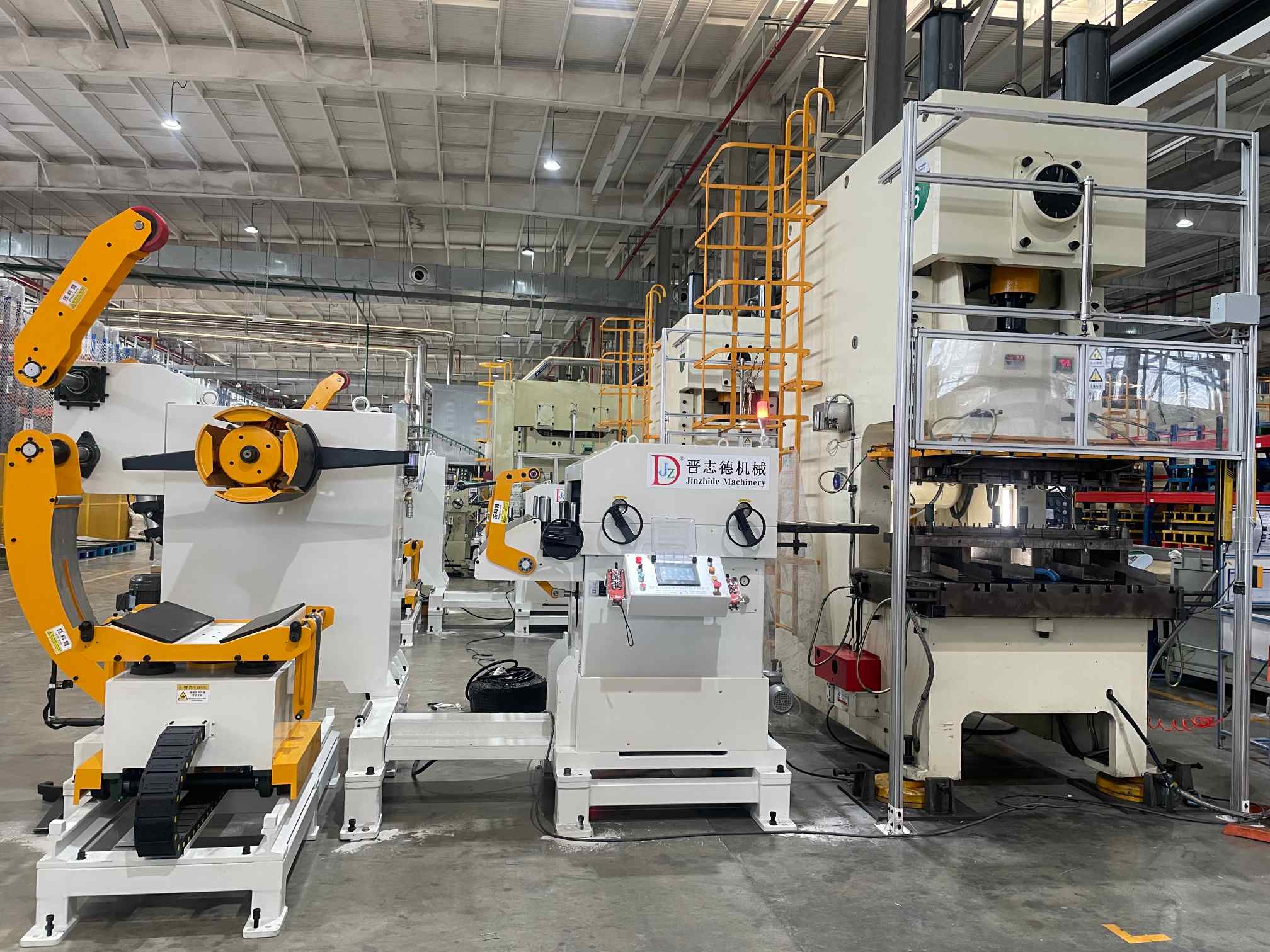

When configuring a decoiler straightener feeder for thin sheet applications, material compatibility is crucial. The equipment is mainly used for automatic processing of thin coil materials and can be configured according to different material characteristics. Common materials include cold rolled steel, stainless steel, copper strip, aluminum alloy, and galvanized sheet.

For switch electrical component production, the material usually goes through multiple stamping processes, including punching, forming, and blanking. After being fed into the precision Stamping Press, the coil material is processed through stamping dies to produce metal components with the required shapes.

Besides electrical components, a high-quality thin plate feeder is also suitable for other thin sheet stamping applications, such as hardware parts, electronic components, home appliance parts, and other metal products.

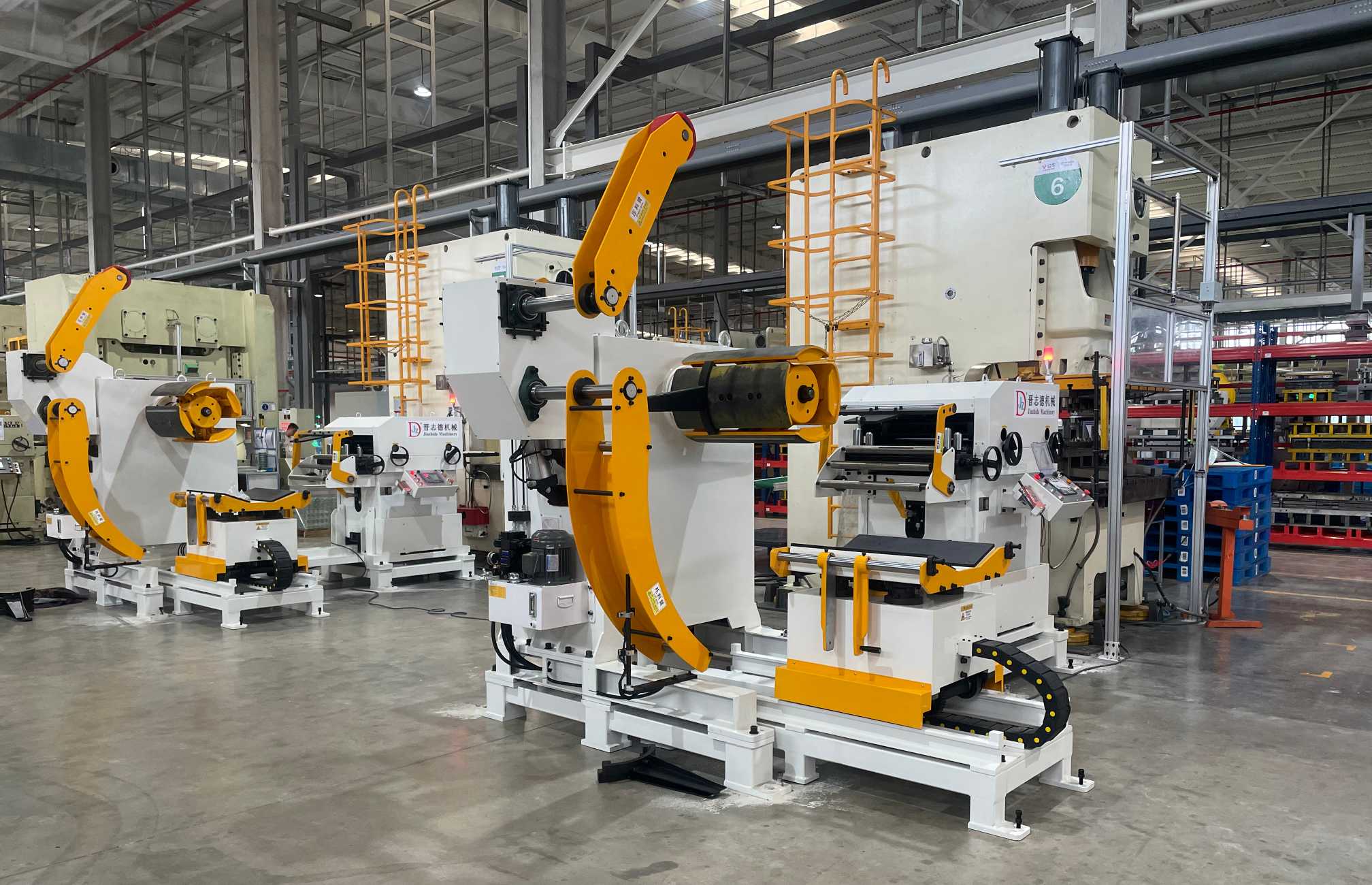

Matching with Precision Stamping Presses for Continuous Production

A stamping Feeder needs to work together with the Stamping Press, stamping dies, and production process to achieve stable operation. During equipment design, Jinzhide considers factors such as press tonnage, material thickness, feeding distance, and product processing requirements to provide a suitable machine configuration.

For precision stamping production, stable material feeding helps reduce variations caused by manual operation and allows the production process to run continuously. The equipment parameters can also be adjusted according to different products, making production changes more convenient.

After delivery, Jinzhide technicians provide installation and commissioning services according to the customer’s production environment, including equipment positioning, feeding height adjustment, parameter setting, and trial operation with the stamping line, ensuring the Decoiler Straightener Feeder works properly with the customer’s existing production system.

Supporting Customers’ Automatic Stamping Production Requirements

Bull Group’s customer reorder of 6 thin plate Decoiler Straightener Feeders is based on previous equipment applications and long-term cooperation between both companies. For manufacturers using automatic stamping production lines, equipment operation stability, ease of adjustment, production line compatibility, and after-sales service are important factors when selecting stamping equipment.

In practical production, Decoiler Straightener Feeders need to be configured according to different material specifications, Stamping Press types, and product processing requirements. Jinzhide provides equipment adjustments based on customer production conditions, including feeding methods, machine structure, and automation configurations, helping the equipment integrate into existing production processes.

Jinzhide will continue to provide automatic feeding solutions for different stamping applications, helping manufacturers optimize coil processing procedures and improve the automation level of stamping production.
