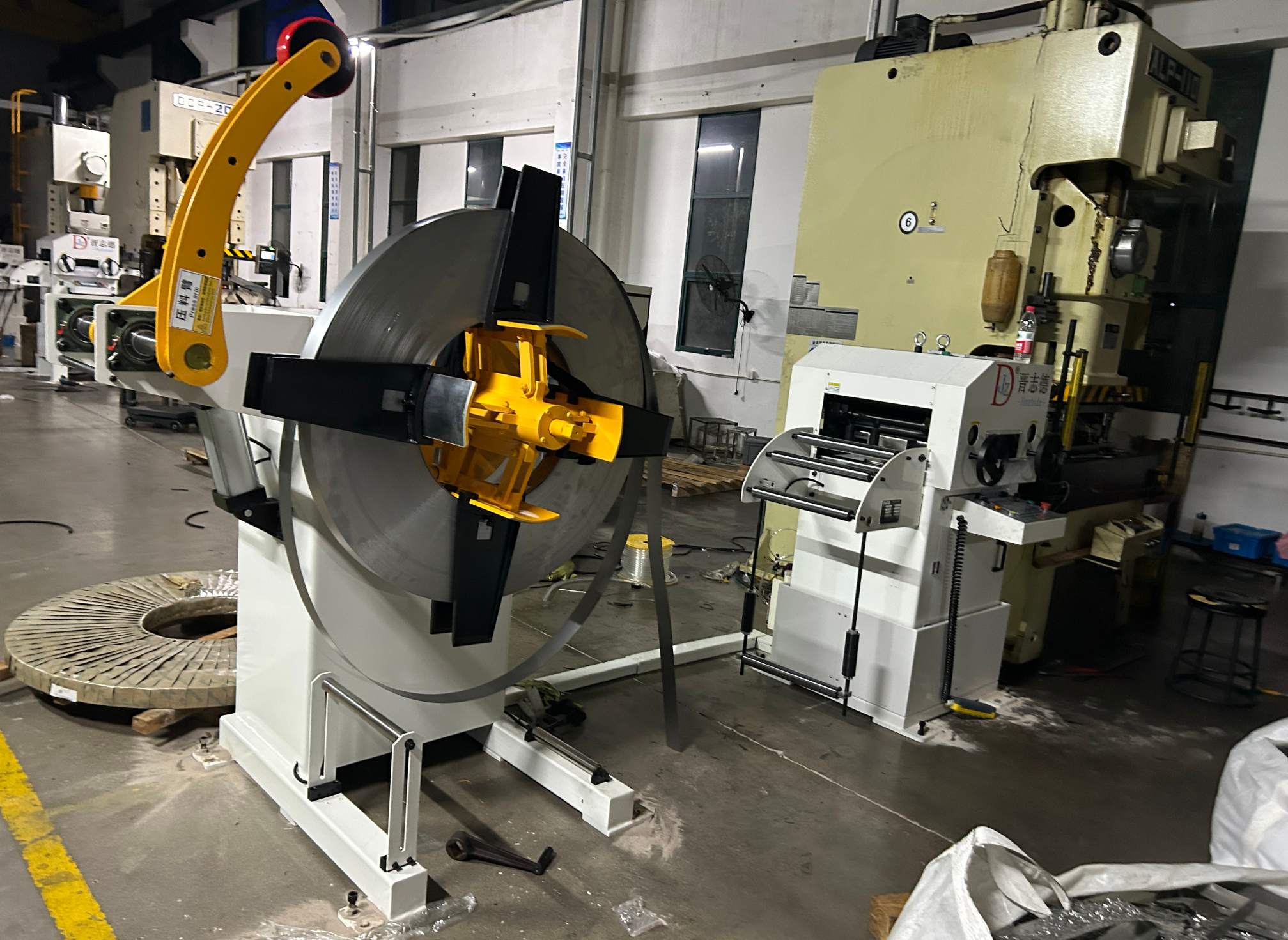

4 Light Duty Decoiler Straightener Feeders Installed Overnight in Shanghai

Recently, the service team of Changzhou Jinzhide Machinery Technology Co., Ltd. traveled to a customer’s factory in Shanghai and completed the installation, commissioning, and operator training of 4 sets of light duty Decoiler Straightener Feeders during the night.

Facing the customer’s tight production schedule and limited installation time, Jinzhide’s technicians adjusted their working hours according to the customer’s production arrangement and carried out the installation during the night. By responding quickly to the customer’s requirements, the service team helped reduce equipment waiting time and supported the customer in putting the stamping production line into operation as soon as possible.

The installation task was completed by two after-sales engineers. After arriving at the factory, they immediately started equipment positioning, electrical connection, parameter setting, and trial operation. After on-site adjustment and testing, all 4 sets of light duty Decoiler Straightener Feeders were successfully installed and entered the trial production stage, providing automatic feeding support for the customer’s stamping process.

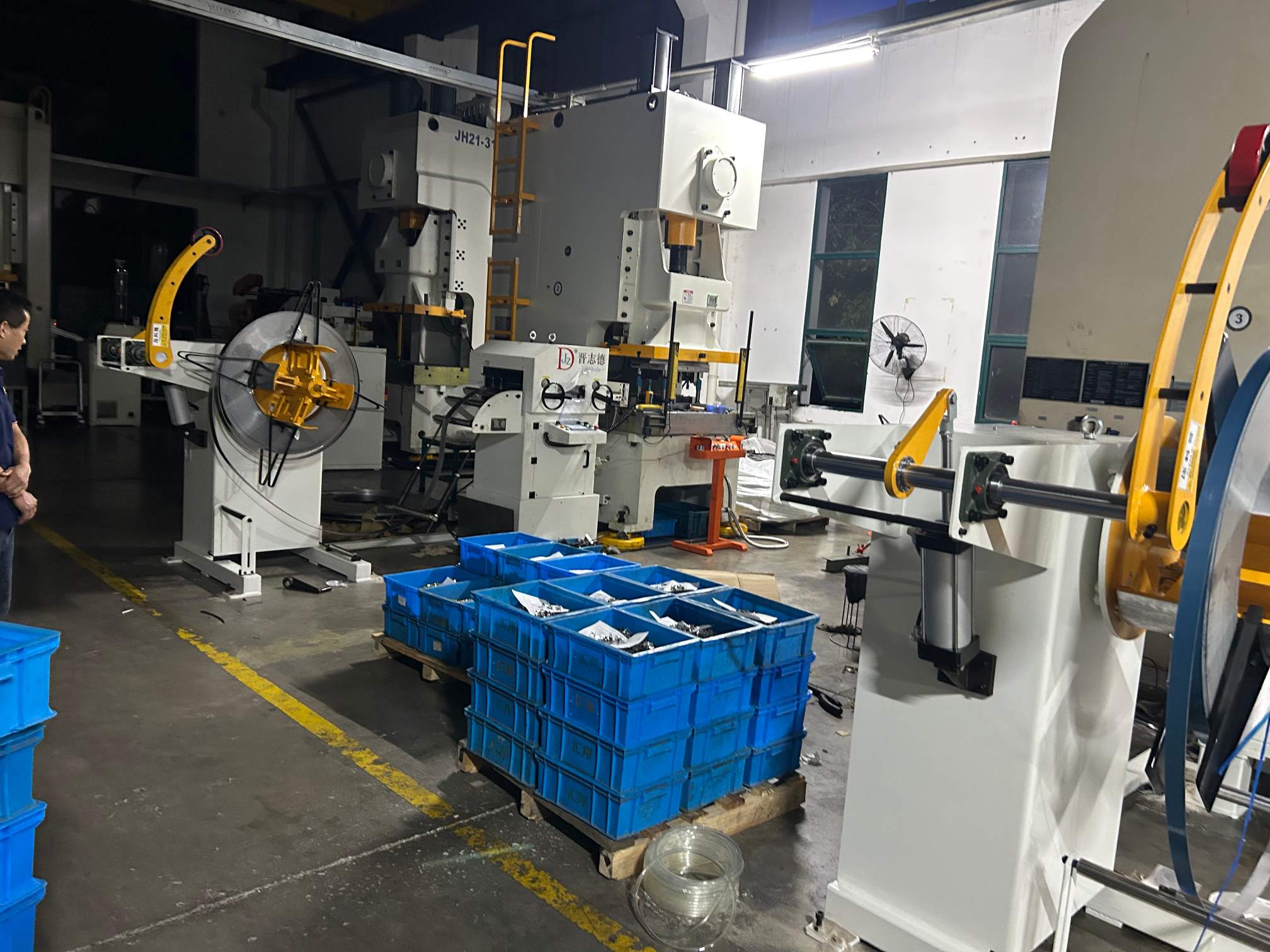

Light Duty Decoiler Straightener Feeder Integrates Uncoiling, Straightening and Feeding

The light duty Decoiler Straightener Feeder delivered this time is mainly used for coil uncoiling, material straightening, and automatic feeding in stamping production lines. By integrating multiple processes into one machine structure, the equipment simplifies the connection between different production units compared with a traditional layout using a Decoiler Straightener combined with a separate Servo Feeder.

With a compact footprint of approximately 3 meters, the machine is suitable for stamping workshops that need to optimize production space or adjust existing line layouts. During operation, the coil material is installed on the Decoiler section, then passes through the Straightener for material correction before being fed into the Stamping Press according to the production cycle.

For applications such as hardware parts, household appliance components, electronic components, and various metal stamping products, the light duty Decoiler Straightener Feeder can be configured according to material specifications, product requirements, and stamping conditions to provide a suitable automatic feeding solution.

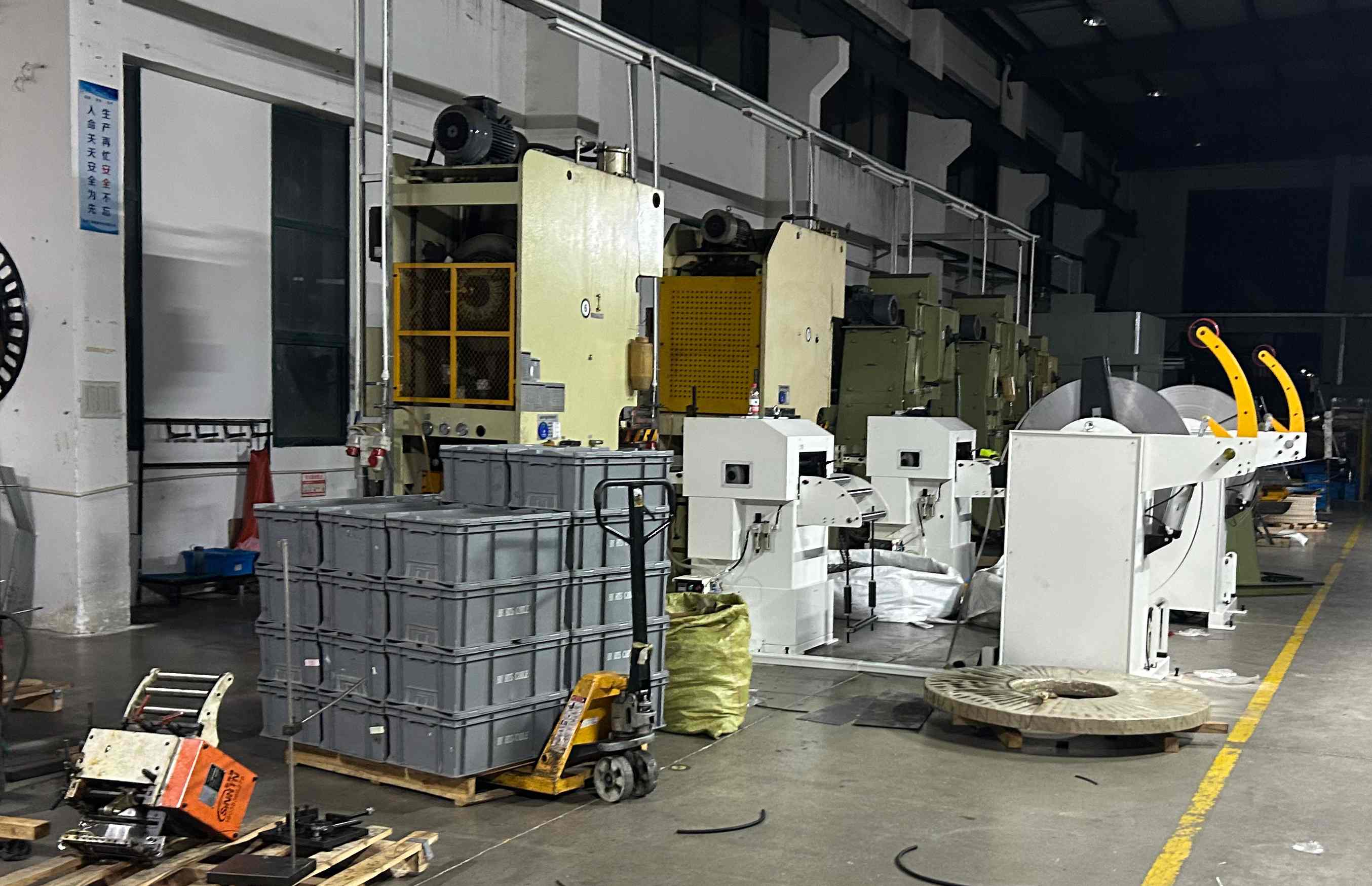

Servo Driven Decoiling and Straightening Adjustment for Different Coil Materials

The decoiling section of this equipment adopts a servo motor driven system to control material unwinding. During the overnight commissioning process, Jinzhide technicians adjusted the decoiling speed, start-stop response, and feeding rhythm according to the customer’s actual material width, thickness, and coil condition, ensuring that the material supply matched the production requirements.

In continuous stamping operations, stable coil feeding needs to work together with the stamping cycle. Through servo control, the Decoiler can perform material unwinding according to preset parameters, helping maintain smooth material supply during production.

The straightening section adopts a worm gear adjustment structure, allowing operators to adjust the straightening amount according to material thickness, material type, and sheet condition. During the on-site training, Jinzhide engineers explained the straightening adjustment method in detail, helping operators understand how to set the machine for different production requirements.

The equipment is suitable for various metal coil materials, including cold rolled steel, stainless steel, copper strip, aluminum, and galvanized sheet, providing material preparation before stamping processes.

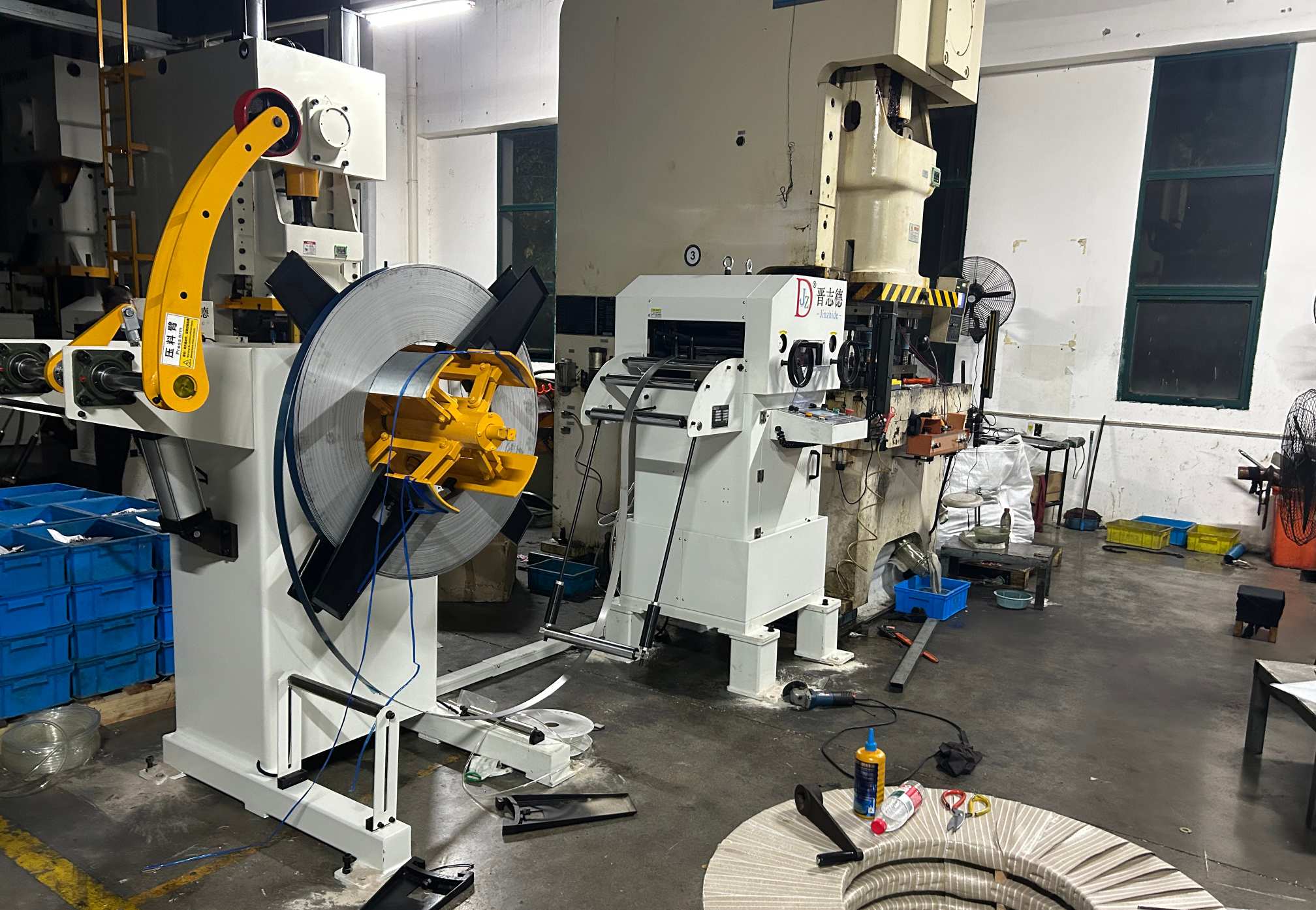

Electric Feeding Height Adjustment for Easier Stamping Press Matching

Different Stamping Press models, dies, and production layouts require different feeding heights. Therefore, matching the feeding height is an important part of equipment installation and commissioning.

During the Shanghai installation, Jinzhide technicians adjusted the feeding height according to the customer’s Stamping Press working table height, die inlet position, and feeding direction. The equipment is equipped with electric height adjustment, making it easier to adapt to different production conditions and reducing manual adjustment procedures.

The machine also supports one-time material threading. After passing through the Decoiler and Straightener sections, the coil material enters the feeding unit directly, reducing repeated threading operations and helping shorten equipment setup time.

Overnight Installation Service to Support Customer Production Plans

For industrial equipment delivery, installation time is often affected by factory production schedules and available machine shutdown periods. To reduce the customer’s waiting time, Jinzhide arranged an overnight installation service according to the actual situation at the customer’s factory.

During this Shanghai installation project, the service team used nighttime hours to complete equipment installation and commissioning, avoiding interference with the customer’s daytime production schedule as much as possible. From machine positioning and wiring connection to feeding parameter adjustment and Stamping Press linkage testing, each step was completed according to the customer’s site requirements.

After commissioning, Jinzhide technicians also provided operator training, including coil loading procedures, equipment operation steps, feeding parameter adjustment, and daily maintenance methods, helping the customer’s operators become familiar with the machine operation.

Automatic Feeding Solution for Continuous Stamping Production

The light duty Decoiler Straightener Feeder is commonly matched with mechanical Stamping Presses, pneumatic presses, and other stamping equipment. By receiving feeding signals and release signals from the Stamping Press, the machine can complete automatic material feeding according to the stamping cycle.

During production, the equipment completes coil unwinding, material straightening, and feeding automatically, while the Stamping Press performs the forming process according to the preset production rhythm. This automated feeding method reduces repeated manual handling operations and helps create a more continuous stamping workflow.

For manufacturers producing multiple product types or requiring frequent production changes, the light duty Decoiler Straightener Feeder provides flexibility in equipment adjustment, production layout, and material changeover.

After the 4 light duty Decoiler Straightener Feeders were installed in Shanghai, the machines have entered the trial operation stage. Jinzhide’s service team will continue to follow up with the customer, adjust operating details according to actual production feedback, and provide ongoing technical support for stable equipment operation.
