Integrated NC Servo Feeder for Stamping Press

In metal stamping automation, the Servo Feeder plays an important role in transporting coil materials into the Stamping Press according to the preset feeding length. The feeding stability, operation convenience, and coordination between the feeder and stamping equipment directly affect the continuity of the production process.

To solve the problem that traditional Servo Feeders require operators to move between the feeding unit and an external electrical control cabinet during adjustment, Changzhou Jinzhide Machinery Technology Co., Ltd. developed the Integrated NC Servo Feeder with a built-in control system. The touch screen, operation buttons, and electrical components are integrated into the feeder body, creating a more compact structure and making parameter setting and machine adjustment more convenient for operators.

Integrated Control Design for Easier Adjustment

Traditional Servo Feeders usually adopt a separated structure, where the feeding unit and electrical control cabinet are installed independently. During installation, mold replacement, or feeding parameter adjustment, operators often need to check the feeding position and control cabinet separately.

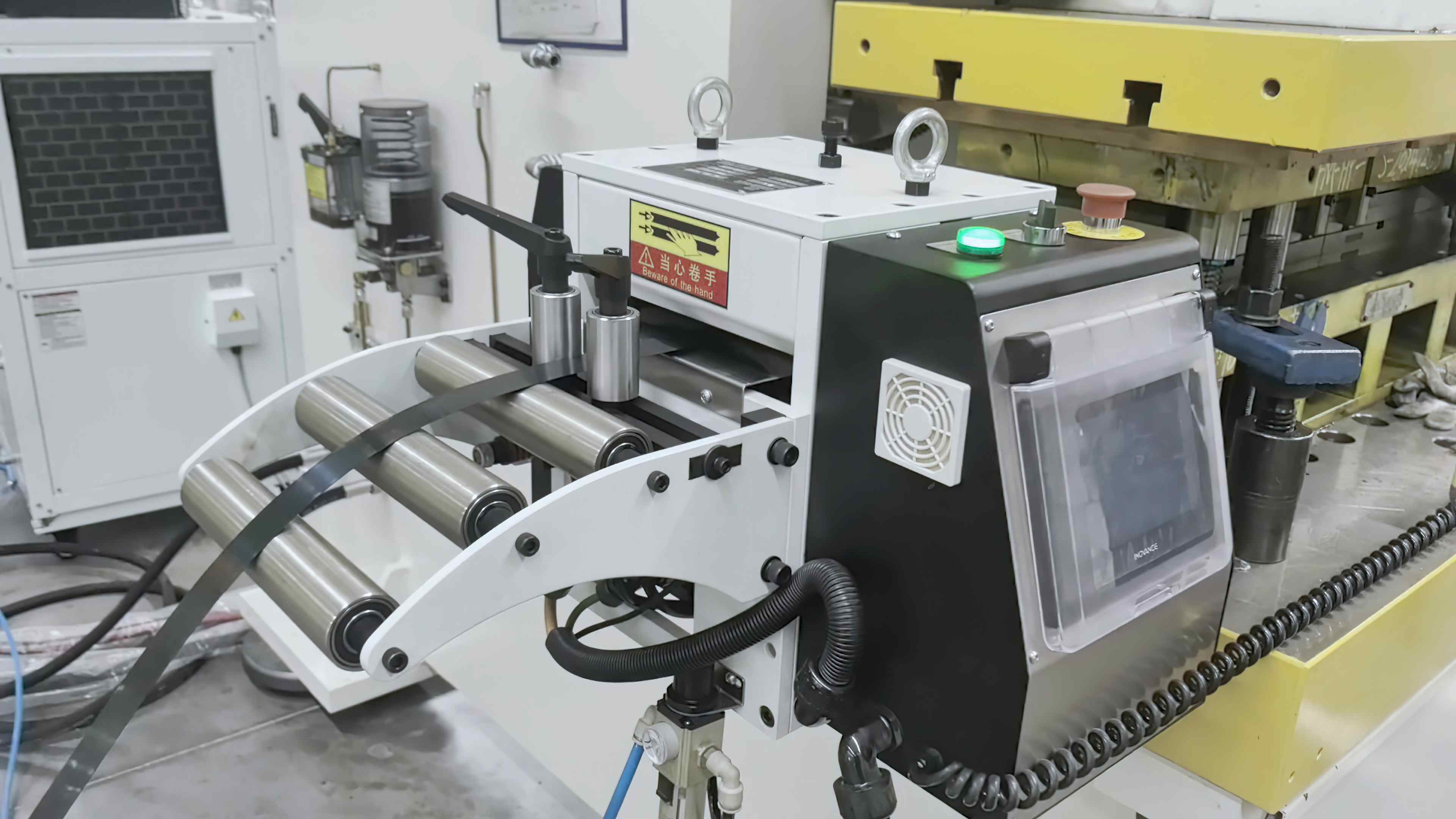

The Integrated NC Servo Feeder combines the touch screen control system with the feeder body, allowing operators to adjust parameters near the feeding area while observing the material running condition at the same time.

Parameters such as feeding length, feeding speed, and operating modes can be adjusted directly through the touch screen. During actual production, operators can check whether the material is running smoothly and whether any feeding deviation occurs while making adjustments, making the setup process more direct and easier to manage.

This integrated design reduces unnecessary movement during machine adjustment and improves the convenience of daily operation.

Compact Structure for Optimized Production Layout

The integrated design not only changes the operation method but also optimizes the overall structure of the Servo Feeder.

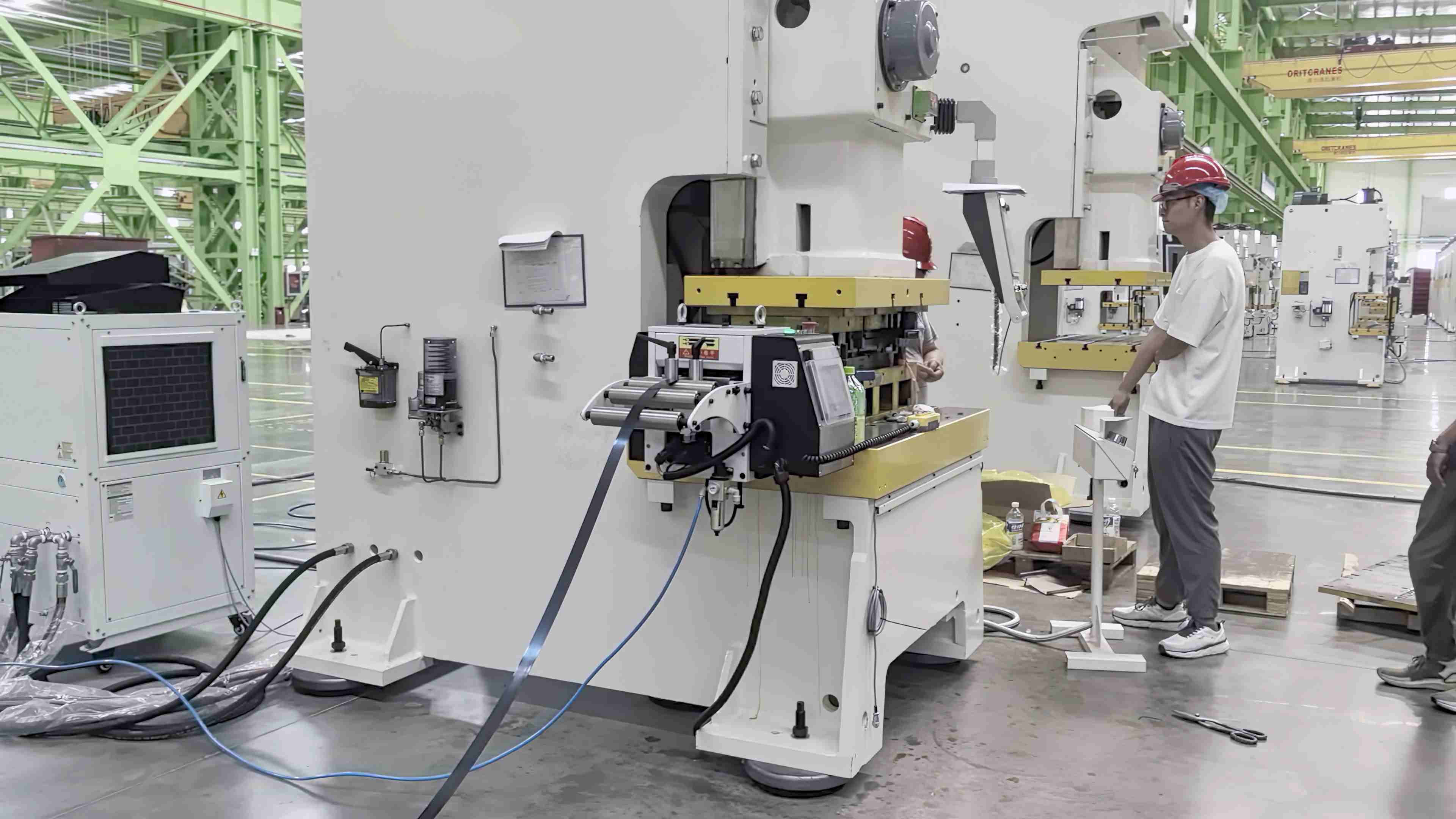

Since no separate electrical control cabinet is required, the equipment occupies less installation space and is suitable for stamping workshops where production space needs to be arranged efficiently.

For production lines used in hardware stamping, home appliance components, electronic parts, and automotive components, the layout usually needs to consider the positions of the Stamping Press, stamping dies, material storage, and operator working areas. The compact structure of the Integrated NC Servo Feeder helps simplify equipment arrangement and reduces additional installation requirements.

Meanwhile, integrating the electrical components into the machine body reduces external wiring connections and makes equipment installation and maintenance more convenient.

Servo Driven Feeding for Different Stamping Applications

The Jinzhide Integrated NC Servo Feeder mainly consists of a feeder frame, servo motor drive system, feeding roller mechanism, transmission components, control system, and touch screen operation module.

The equipment uses a servo motor to drive the feeding rollers and controls material transportation according to preset parameters. Compared with traditional mechanical feeding methods, the Servo Feeder allows flexible adjustment of feeding length based on different product requirements, making it suitable for various stamping applications.

To reduce the influence of vibration during Stamping Press operation, this series of Servo Feeders adopts an internal vibration-resistant structure design. This helps maintain stable feeding operation during continuous production.

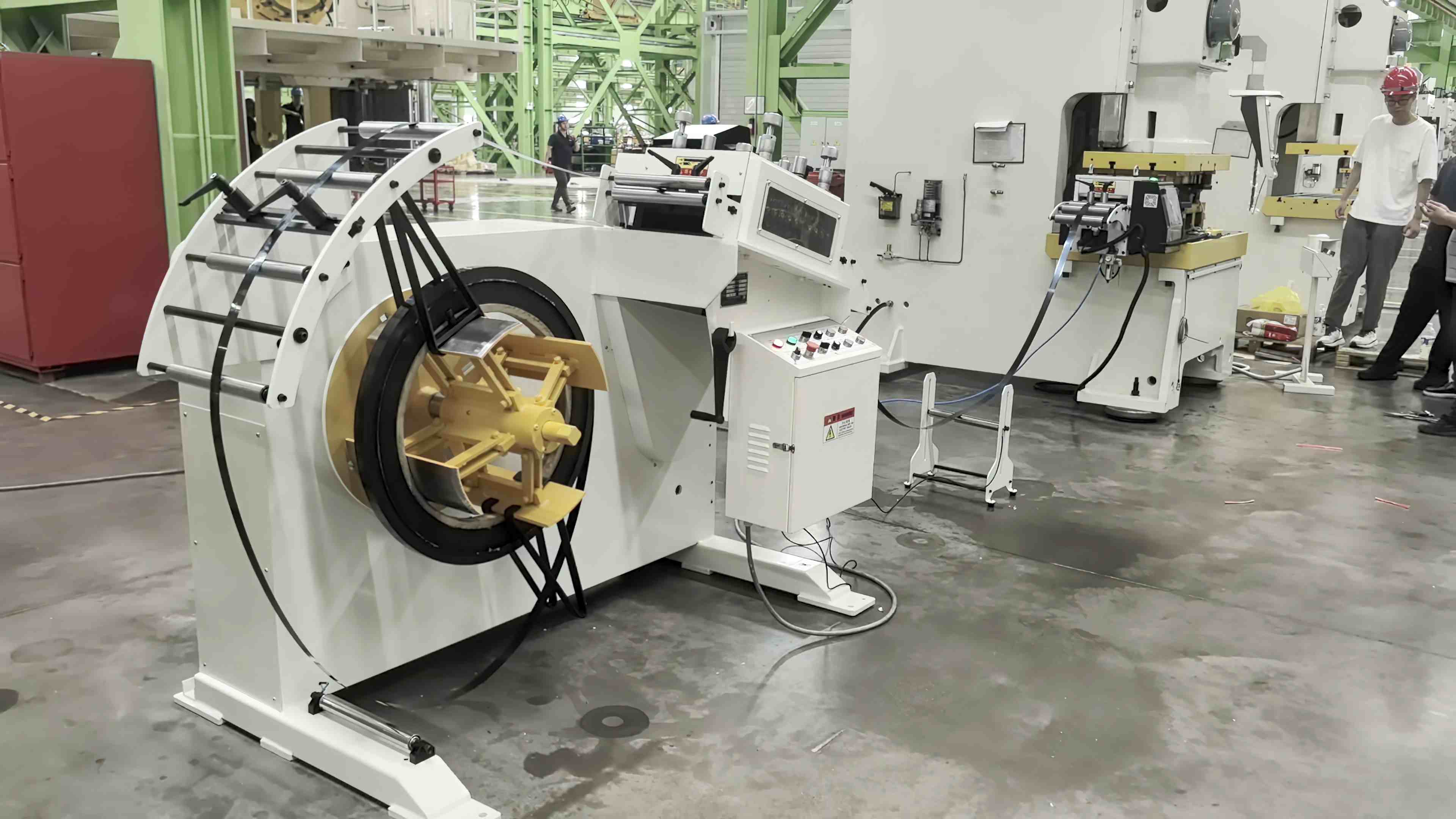

According to customer production requirements, the feeder can be matched with different types of Stamping Presses, including open frame presses and closed frame presses. It can also be integrated with Decoilers, Straighteners, Decoiler Straightener Feeders, and automatic stamping dies to form continuous stamping production lines.

Suitable for Various Metal Materials and Applications

The Integrated NC Servo Feeder is suitable for automatic feeding of various metal coil materials, including cold rolled steel, stainless steel, copper strips, aluminum sheets, and galvanized sheets.

Based on material width, thickness, and stamping product requirements, Jinzhide can provide different Servo Feeder specifications and configurations.

The equipment is widely used in the production of hardware stamping parts, electronic components, home appliance components, automotive parts, and sheet metal products.

During automatic stamping production, operators only need to install the material and set the required parameters through the touch screen before the feeder works together with the Stamping Press for continuous feeding. For manufacturers producing multiple product models and requiring frequent parameter adjustments, the integrated control design helps simplify the adjustment process.

With its integrated control design, the Integrated NC Servo Feeder makes stamping press feeding adjustment more convenient and provides a compact and practical automatic feeding solution for metal stamping production. For manufacturers looking to optimize workshop layout and improve feeder operation convenience, this type of Servo Feeder can meet their actual production requirements.
